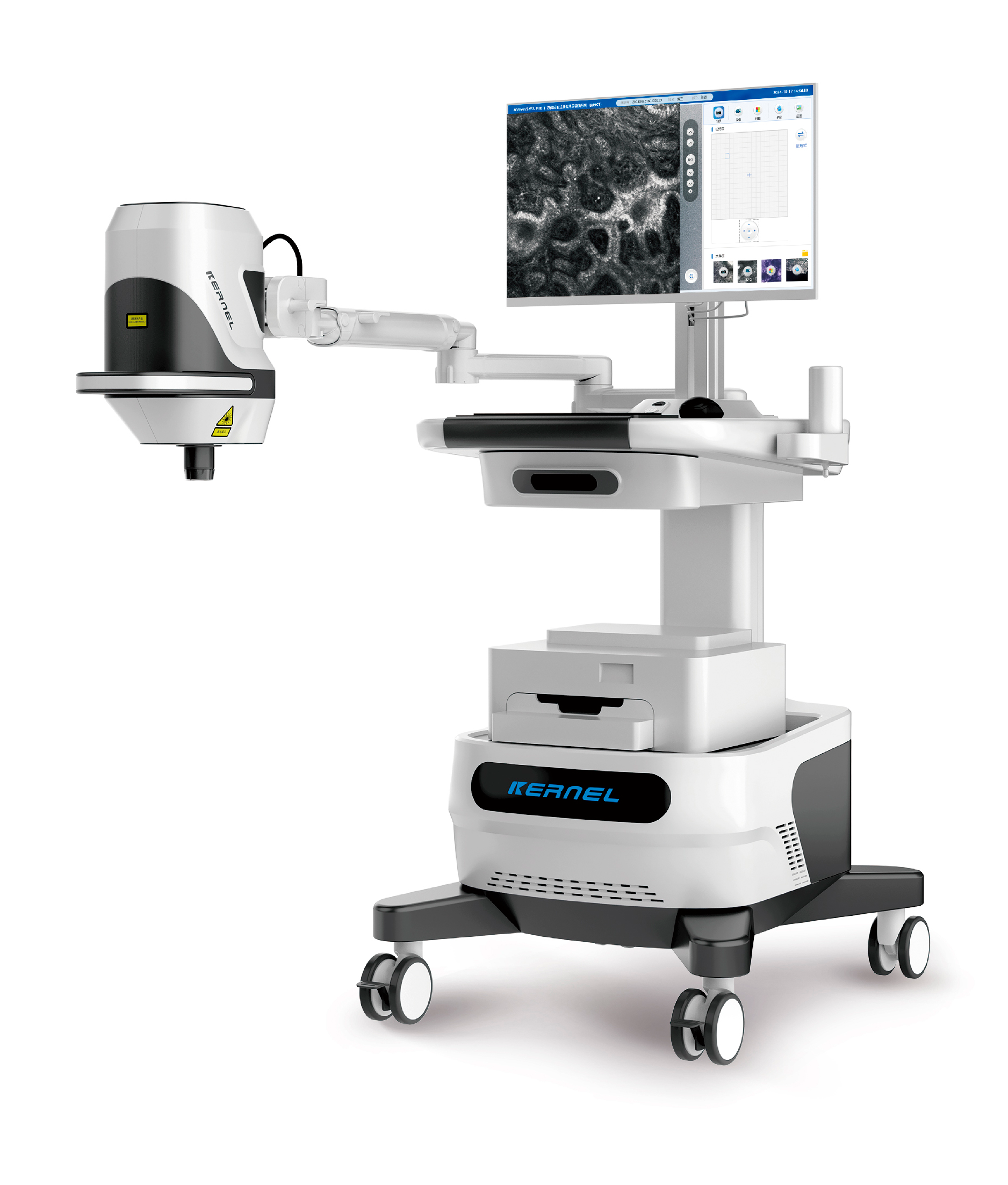

KERNEL RCT-9503 In Vivo Reflectance Confocal Microscopy

Specifications:

Optical lateral resolution: < 1.25 μm
Optical axial resolution: < 5.0 μm
Imaging depth: ≥ 300 μm
Laser wavelength: 830 nm
Scanning field of view: 500 μm × 500 μm
Image stitching: 8.5 mm × 8.5 mm
Display resolution: 1024 × 1024
Frame rate: ≥ 15 fps
Advanced software algorithms
Non-invasive cellular diagnosis
Breakthrough imaging performance
High-precision scanning capability

Free & Fast Shipping
Secure Payments
100% Authentic Product

In Vivo Reflectance Confocal Microscopy (RCM) is based on optical confocal imaging.
It uses reflected light from a low-energy laser source focused on specific layers of the skin to generate images.

Non-invasive imaging of skin lesions
Cellular-level magnification
Ultra-high resolution
High consistency with dermatopathological examination
Helps reduce unnecessary biopsies
RCM produces images with different brightness levels depending on refractive index differences within skin microstructures.

Due to its cross-sectional imaging capability, it allows layer-by-layer scanning from superficial to deeper skin layers — similar to CT — which is why it is often called “Skin CT.”

Principle of RCM Imaging

RCM uses optical scanning confocal technology:

A low-energy laser focuses on specific skin layers
Light is backscattered from tissue structures
Signal passes through a pinhole to the detector

Only light from the focal plane is captured → creates a clear image
Out-of-focus light is rejected

Image contrast depends on refractive index differences between tissues

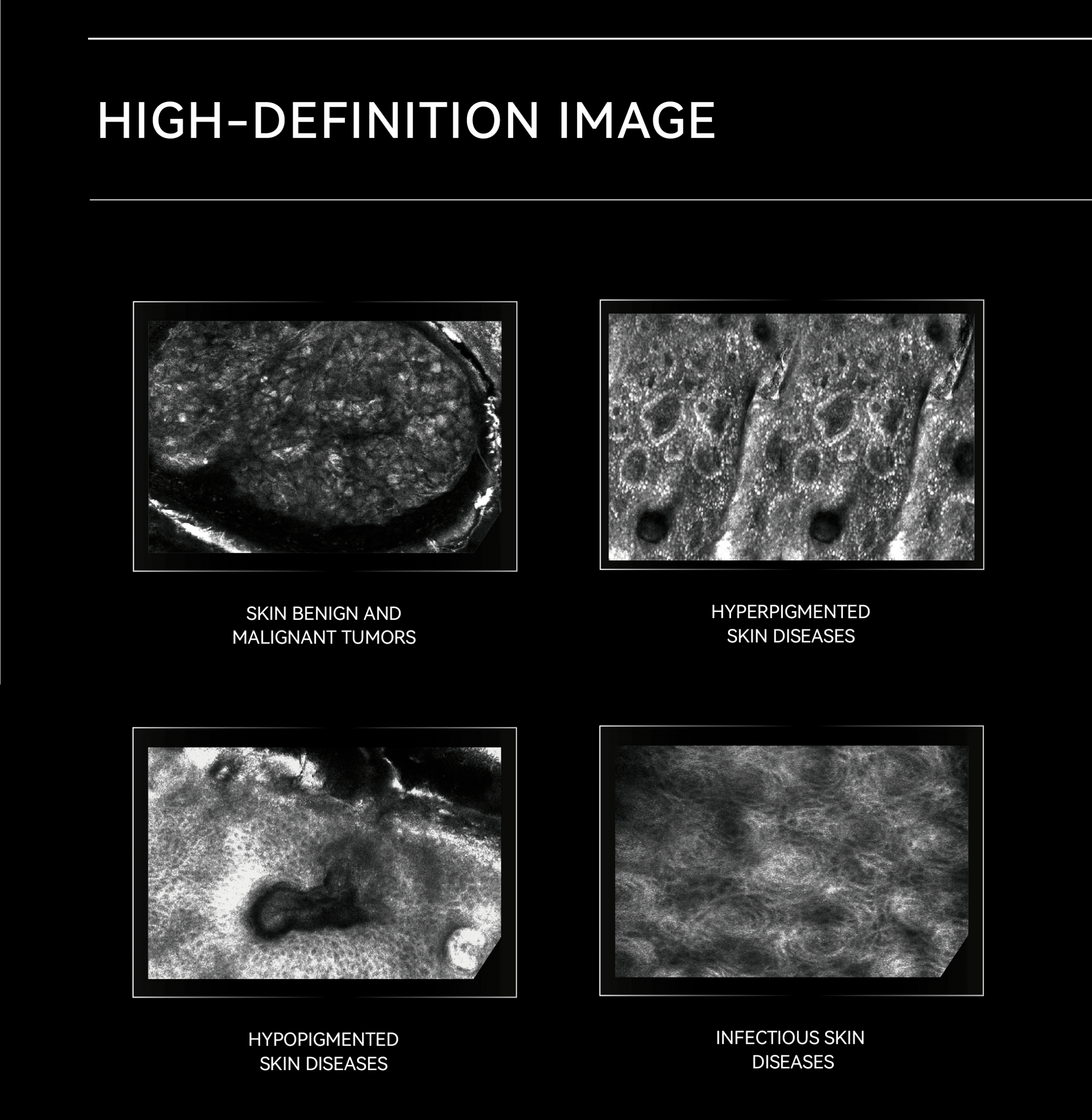

Clinical Applications

1. Lesion border definition
2. Differentiation of benign vs malignant tumors
3. Pre/post treatment evaluation (e.g. laser procedures)
4. Disease monitoring
