Home ProductsKERNEL Superficial X-Ray Radiation Therapy System (XT-5600)

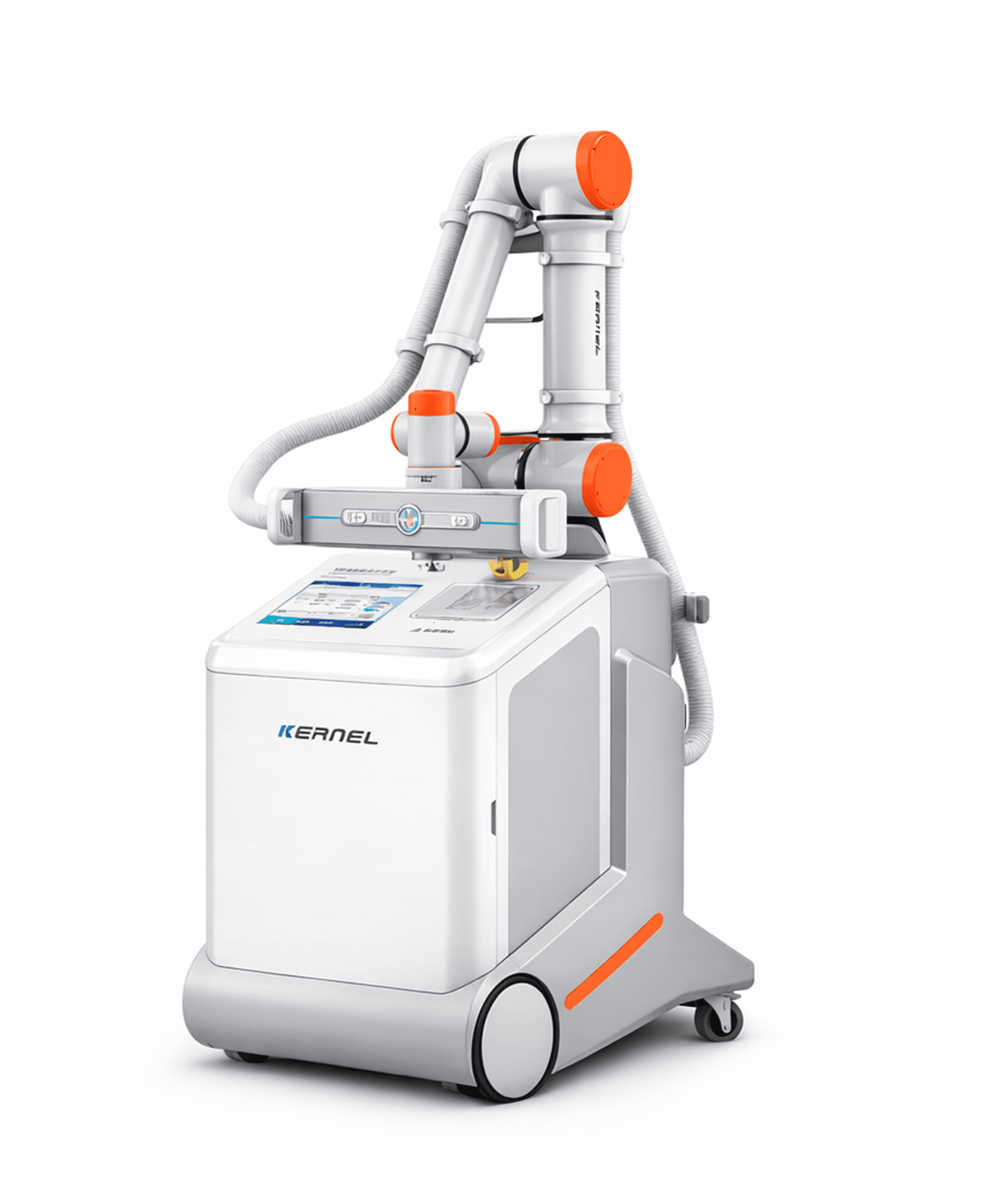

KERNEL Superficial X-Ray Radiation Therapy System (XT-5600)

Specifications:

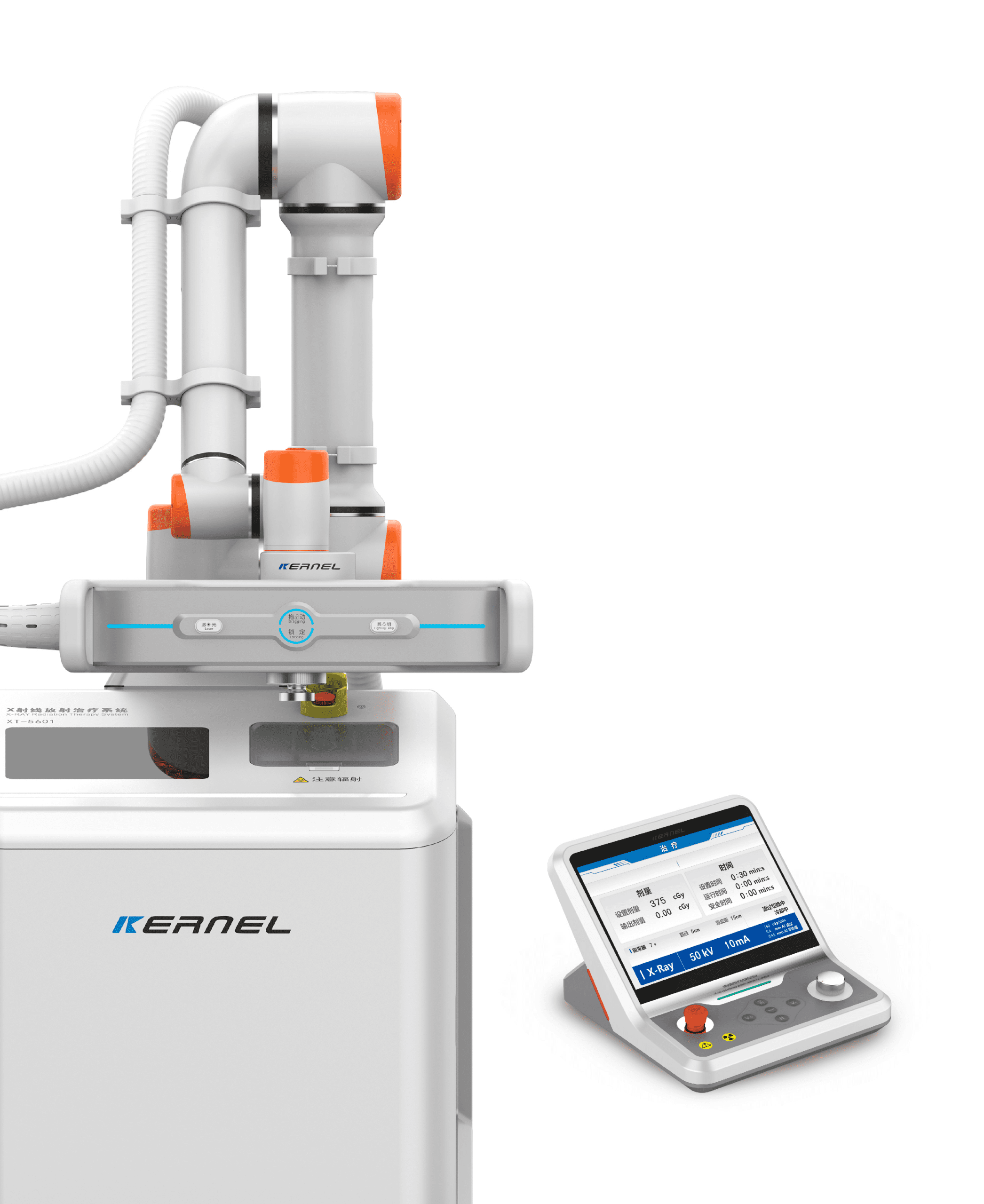

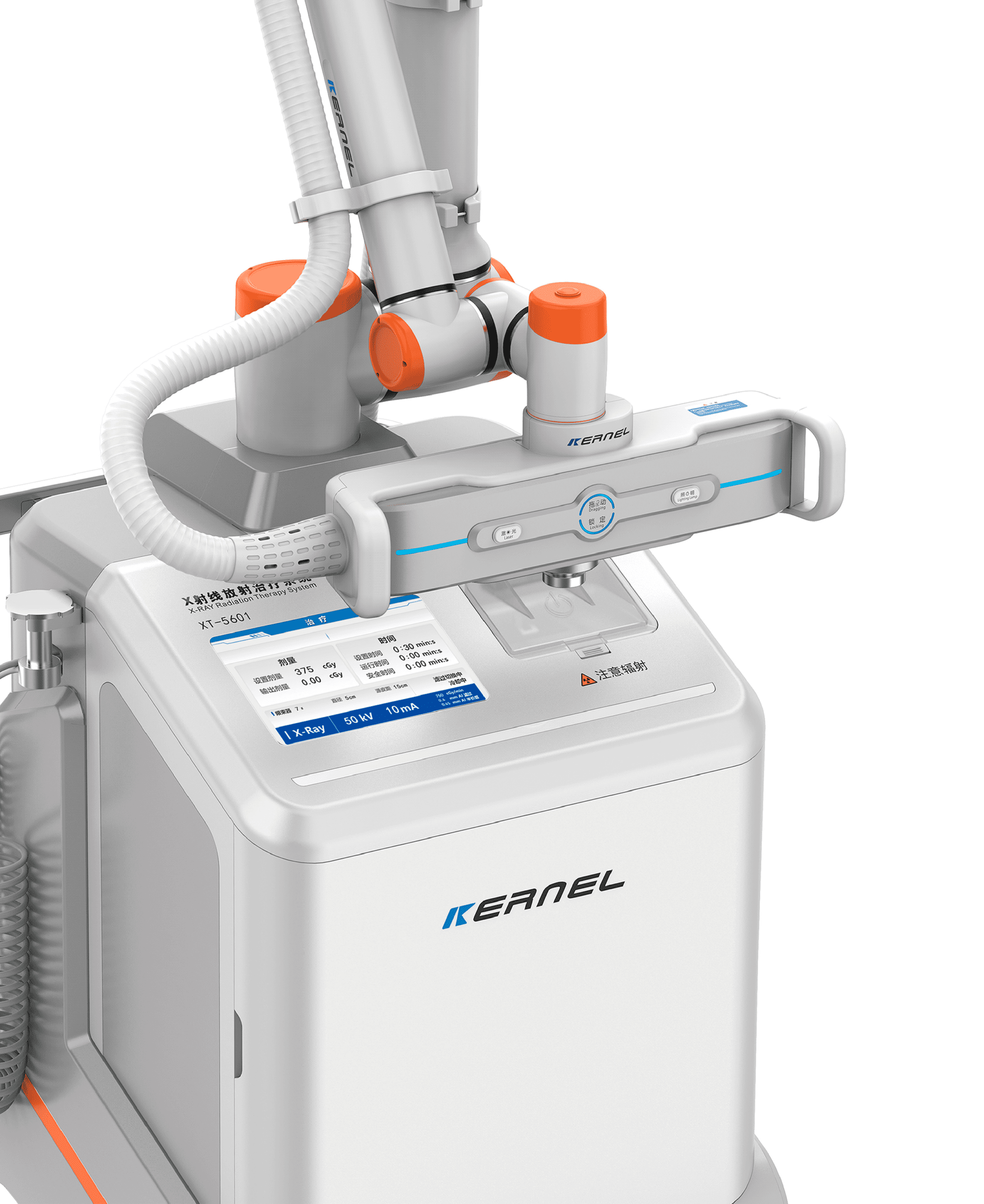

Rotating treatment head (The treatment head can be suspended at flexible angles)
Timer (Set treatment time as needed)
RAD self-check (Built-in RAD check function)
Multi-language system (Supports both Chinese and English languages)
Applicators (Identify the applicator size automatically)
Delivers non-invasive, painless radiation therapy with flexible patient positioning options.
Indicated for the management of keloids and primary cutaneous epithelial malignancies.
Low-dose radiation targets only skin lesions thickness. Applicable to lesions of varying sizes.

Free & Fast Shipping
Secure Payments
100% Authentic Product

Value Proposition

Driven medical innovation with Superficial Radiation Modulation Technology. High-energy electron beams are accelerated within a vacuum chamber, generating soft X-rays under megavolt-level electric fields. Breaking beyond traditional radiotherapy, we have developed a X-ray Control System. By continuously elevating physical accuracy, we pursue new standards in superficial radiotherapy—ushering in a new era of superficial X-ray treatment

Core Advantages

Innovative design aligned with clinical operating habits. The system features a built-in active dose planning system, adopts a modular architecture for rapid and convenient maintenance.
Innovative Cooling System, delivering high-efficiency, rapid-response temperature control system that ensures reliability of the entire machine.

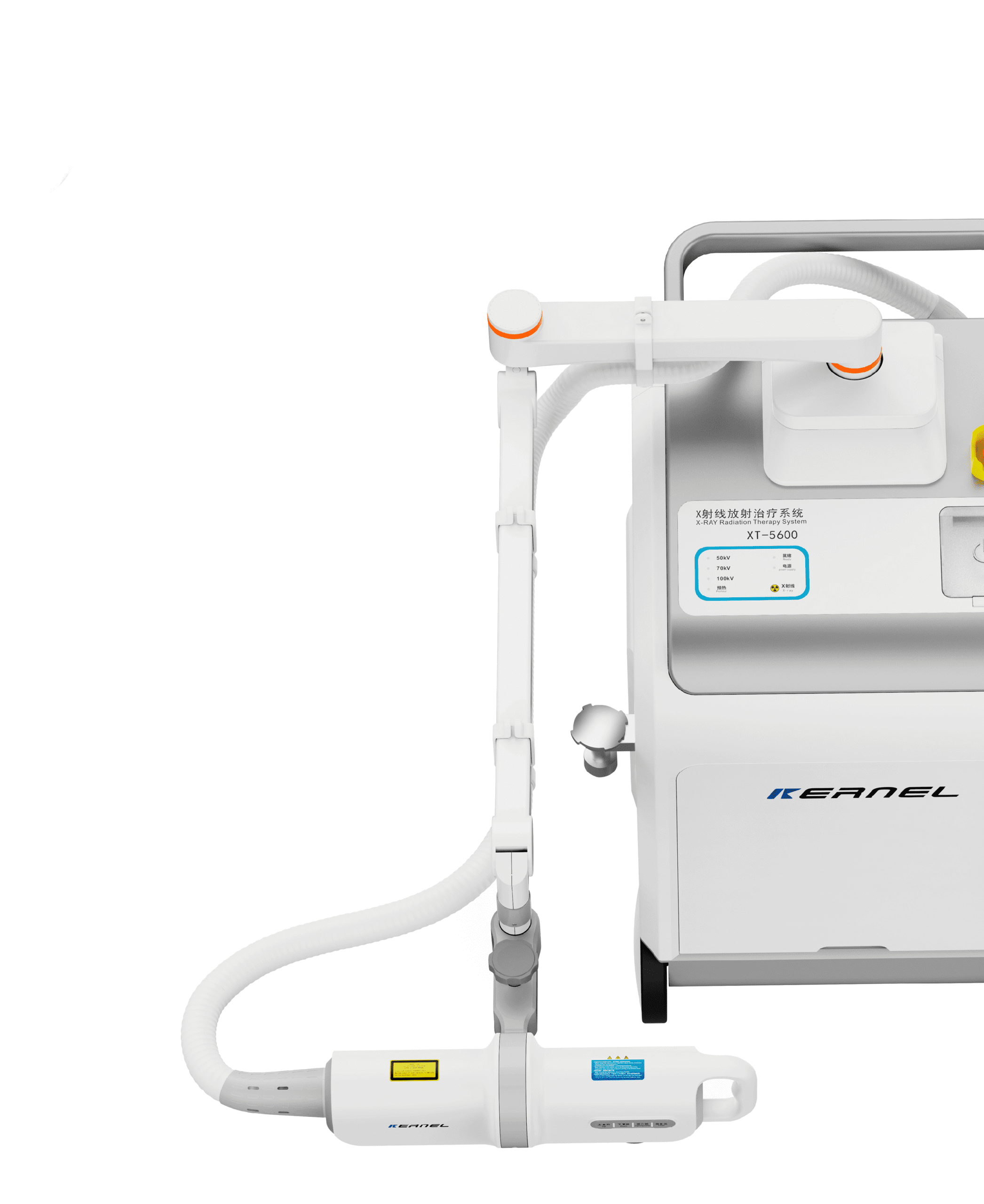

Multi-size Applicator System

Multi-size applicator system includes 11 interchangeable applicators for various lesions. The transparent observation window for real-time adjustment. Advanced dose control technology concentrates the radiation dose in the target area, protecting surrounding normal tissues

Intelligent Innovation

Powered by the Kernel Intelligent R&D Technology Platform

Equipped with advanced actively controlled X-ray technology, enabling dynamic real-time irradiation modulation to ensure precise dose conformity with the treatment target. The innovative RAD function ensures controllable dose

Technical Principles

Modulating Biological Behavior of Pathological Cells Through Physical Energy
Promoting the Transformation of Treatment Paradigms and Improving Medical Accessibility

Superficial X-Ray Therapy (SXRT) utilizes soft X-rays characterized by:

Shallow penetration depth
Low energy
High safety

X-rays generate a large amount of ionizing radiation energy within the cells at the lesion site. By directly or indirectly damaging DNA and RNA (producing oxygen free radicals), they cause abnormal cells to lose their ability to proliferate, thereby treating diseases caused by abnormal cell proliferation

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “KERNEL Superficial X-Ray Radiation Therapy System (XT-5600)”

You must be logged in to post a review.

The XT-5600 is a superficial X-ray radiotherapy system designed for clinical dermatology use. It is intended to deliver low-penetration radiation to specific areas of the skin under professional medical supervision.
The system may be used in clinical protocols for keloids and certain primary epithelial skin tumors. Final treatment decisions should always be made by a physician based on the patient’s diagnosis and treatment plan.
The XT-5600 includes a rotating treatment head that allows the angle of application to be adjusted. It also includes a treatment timer to help set the session duration according to the clinical protocol.
Yes. The system includes multiple applicator sizes with automatic recognition, allowing the clinical team to choose the appropriate applicator for different treatment areas.
Superficial radiotherapy allows clinics to treat selected skin lesions with limited penetration depth. For dermatology practices managing complex skin cases, it can be a valuable technology within a controlled clinical setting.
